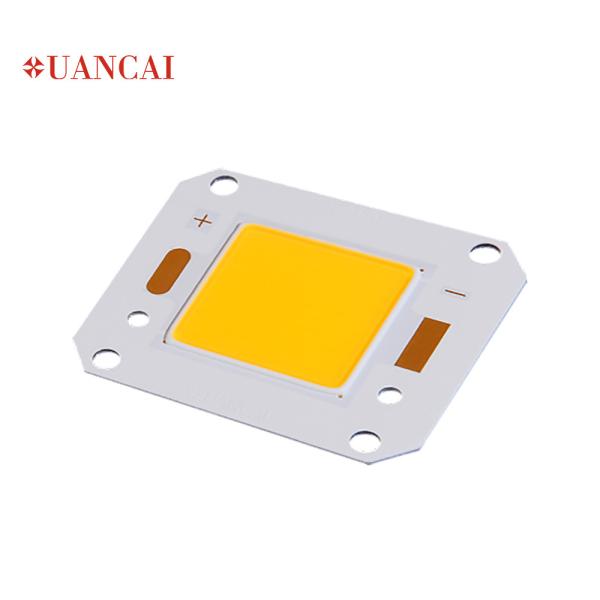

50W 1500mA 3000K 4000K 6500K Streetlight COB Chip 140lm/w

Name: 50W 1500mA 3000K 4000K 6500K Streetlight COB Chip 140lmw
Brand: XUANCAI
Price: 1.8 USD

Quality 50W 1500mA 3000K 4000K 6500K Streetlight COB Chip 140lm/w wholesale

Brand Name : XUANCAI

Model Number : GL-40*46/24*24 led cob chip

Certification : CE ROHS LM-80

Place of Origin : China

MOQ : 500

Price : $1.8-$3.9

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 10000M / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Product Name : GL-40*46/24*24 led cob chip

Watt : 50w

Current : 1200-1500mA

Voltage : 30-32v

Lumens : 130-140lm/w

Color temperature : 2700-6500k

CRI : 70/80

Chip Brand : US Bridgelux

Application : Flood light & Flood light

Warranty : 3 years

Contact Now

Distributor GL-4046/2424 Street light Flood light 50W 100W Copper Base US Bridgelux CE ROHS LM-80 Certificate

Product Description

Product Name	GL-4046/2424 led cob chip
Watts	50w
Current	1350-1500mA
Voltage	30-32v
Lumens CRI	70/80
Lumens	130-140lm/W
Color Temperature	2700-6500k

Product Introduction

Mechanical Dimensions : 46.0x40.0x2.2(mm)

◆Package Structure :Aluminium Base Chip on Board

◆CRI(Ra):Min.80,Min.90

◆Nominal CCT :2,700K,3,000K,3,500K,4,000K,5,000K,6,000K

◆Chromaticity Range : 3-step MacAdam Ellipse

◆RoHS compliant

◆Better die arrangement for optics

◆Wide range of luminous fluxand high efficacy

Product Nomenclature

XC 46 24-M 10 10-A 30 80-F 3 1

[1][2][3][4][5][6][7][8][9][10][11][12]

[1]:Company abbreviation

[2]:Product Size

[3]:Luminescent surface

[4]:Optical effect level

[5]:Number of LED chips in Series LED

[6]:Number of LED chips in parallel LED

[7]:Color category

[8]:Nominal CCT

[9]:Color index

[10]:Light range

[11]:Chromaticity Range

[12]:Type of substrate

Electro Optical Characteristics

Product Code

Nominal CCT

CRI(Ra)

Luminous Flux(lm)

Efficacy ( lm/W )

Forward Current (mA)

Voltage (V)

Min.

Typ.

Min.

Typ.

Max.

XC4624-M1010

-A2780-E31

2700K

6209

6536

135

1500

32.3

XC4624-M1010

-A2790-C31

5229

5504

114

1500

32.3

XC4624-M1010

-A3080-F31

3000K

6481

6822

141

1500

32.3

XC4624-M1010

-A3090-C31

5392

5676

117

1500

32.3

XC4624-M1010

-A3580-F31

3500K

6645

6994

144

1500

32.3

XC4624-M1010

-A3590-D31

5719

6020

124

1500

32.3

XC4624-M1010

-A4080-F31

4000K

6699

7052

146

1500

32.3

XC4624-M1010

-A4090-D31

5882

6192

128

1500

32.3

XC4624-M1010

-A5080-F31

5000K

6536

6880

142

1500

32.3

XC4624-M1010

-A5090-D31

5828

6134

127

1500

32.3

XC4624-M1010

-A6080-F31

6000K

6536

6880

142

1500

32.3

XC4624-M1010

-A6090-D31

5664

5962

123

1500

32.3

Notes:

1,a tolerance of±12 on luminous flux measurements

2,a tolerance of±3 on forward voltage measurements

3,a tolerance of±1 on Ra measurements

4,a tolerance of±0.01 on CIEXY measurements

Applications

50W 1500mA 3000K 4000K 6500K Streetlight COB Chip 140lm/w
