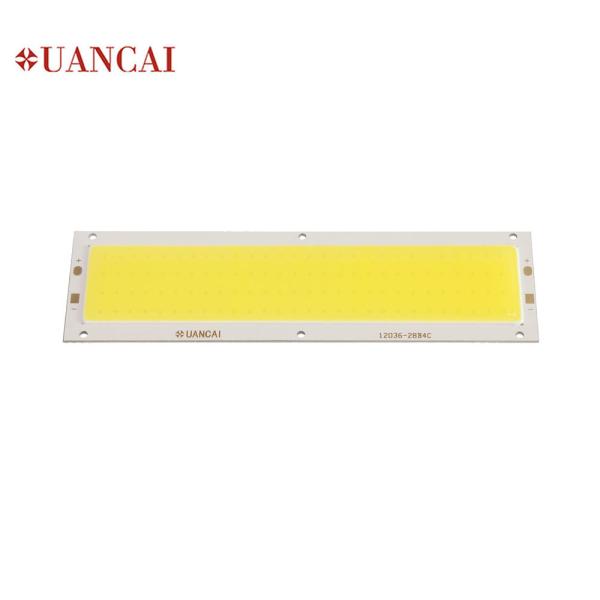

6500K Chip Led 10w 12v

Name: 6500K Chip Led 10w 12v
Brand: XUANCAI
Price: 1 USD

Quality 6500K Chip Led 10w 12v wholesale

Brand Name : XUANCAI

Model Number : XCP 10W COB 120*40MM

Certification : CE ROHS LM-80

Place of Origin : China

MOQ : 100PCS

Price : $1 -$ 1.8 /PCS

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 100000M / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Size : 120*40MM

Power : 10W

Voltage : 12-14V

CRI : 80

Lumens : 120-130lm/w

Chip Brand : Sanan

Certificate : CE ROHS

Warranty : 3 Years

Application : Car light/ Camping light

Color : Warm White / Cool White

Contact Now

Long strip cob 120*40/F112*26 10w 12V cob led chip 6000-6500K 120--130lm/w used in Camping light

Characteristics

Product Information
Product Name	XC-120*40MM led cob chip
Power	10w
Voltage	12v
CRI	80
light color	3000K/ 4000k/ 6000K / Red/ Blue/ Green/ Yellow
Chip Material	Sanan
Warranty	3 Years
Luminous efficacy	120-130LM/W

Product Introduction

1-1 Features

◆ Mechanical Dimensions : 120 x 40 x1.7(mm)

◆ Package Structure :Aluminium Base Chip on Board

◆ CRI(Ra): Min.70/ Min.80/ Min.90

◆ Nominal CCT : 2700K/ 3000K/ 4000K/ 6000K

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous flux and high efficacy

1-2 ,Applications

Car light/ Camping light

Application

6500K Chip Led 10w 12v

User Manual

1. Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.

2. Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.

3. Temperature control

Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.
